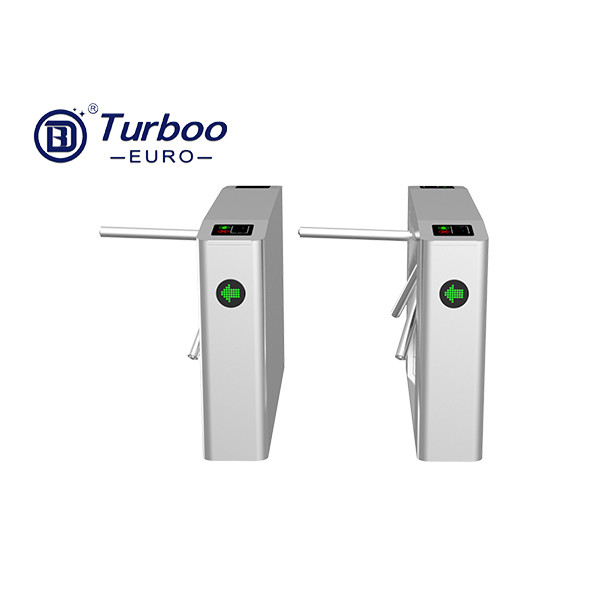

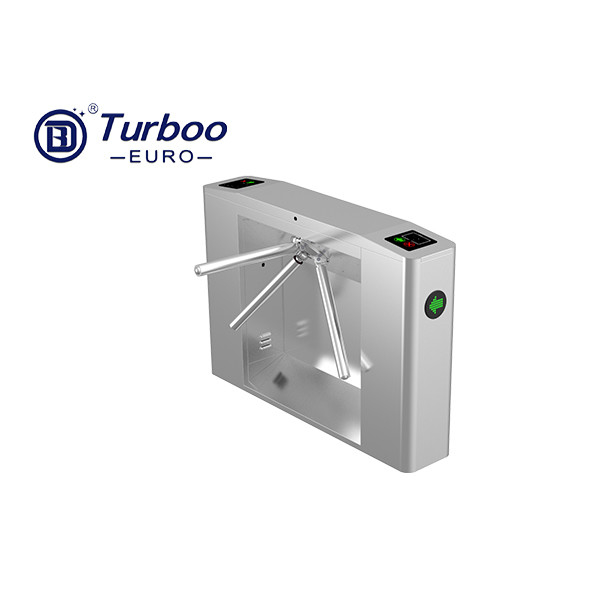

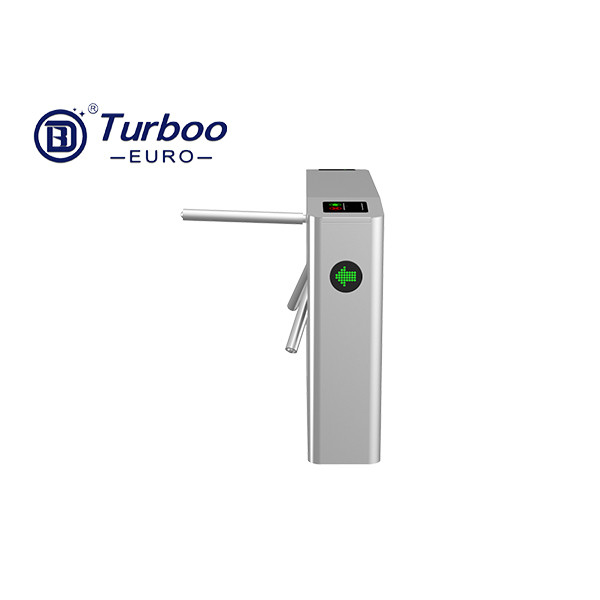

RFID Three Arm Tripod Turnstile Gate Vertical Tripod Turnstile Turboo
Product Description
The standard tripod turnstile series are made of 304 stainless steel, which is rustproof, durable, and can resist external destroy. Its structure of cuboid framework and the arm not only provide people with civilized and orderly transit manner but also prevent the illegal in and out effectively.
Meanwhile, m the emergency, the arm will drop automatically. According to different control modules, this series can be divided into full-auto type, semi-auto type and manual type.
Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access security.
Product parameters
|
Technical Data
|
Unit
|
K149A
|
|
Passage width
|
mm
|
<650
|
|
Throughput rate
|
p/m
|
35
|
|
Power supply
|
V(ac)
|
100-240
|
|
Operational voltage
|
V(dc)
|
24
|
|
Max power consumption
|
w
|
30
|
|
Frequency
|
hz
|
50-60
|
|
prectection level
|
ip
|
>44
|
|
Working temperature
|
degree
|
-25 to +70
|
|
Dimension excluding bars
|
mm
|
1400X280X980
|
|
Net weight including bars
|
Kg
|
62
|
Dimension Diagram
Features And Benefits:
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable;
2. Running stable, little noise and no mechanical impact;
3. Self-checking-power-on function, if power on, turnstile will auto get to be held
4. Various working means can be set in the control panel menu, namely bi-direction card reading passing, or one direction card
reading passing and another passing limits, or one direction card reading passing and another free passing and more;
5. If power off, arm will fall automatically while power on later, arm should be lift by hand, first press the arm with a little force and then lift it manually;
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements;
7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer
far control and management can be realized by computer;
8. It will count the persons who have been passed through automatically and will show the number by LED directly(LED is optional);
9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass;
10. Card reading memory or card reading without memory function can be set in the control panel menu according to your
request;
11. If working with software, the total-in-population can be set to satisfy special request;
12. Re-position function. after card reading, if passenger not through within the specific time, time and the limit passing time
length can be set;
13. Card mounting is available;
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more reliable and accurate;
Access Control:
Topolpgical Graph
FAQ:
1. How about your company’s actual strength?
We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 20000 square meters in total.
2. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.
4. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
