RFID Swing Turnstile Gate Dry Contact 120w With Card Reader

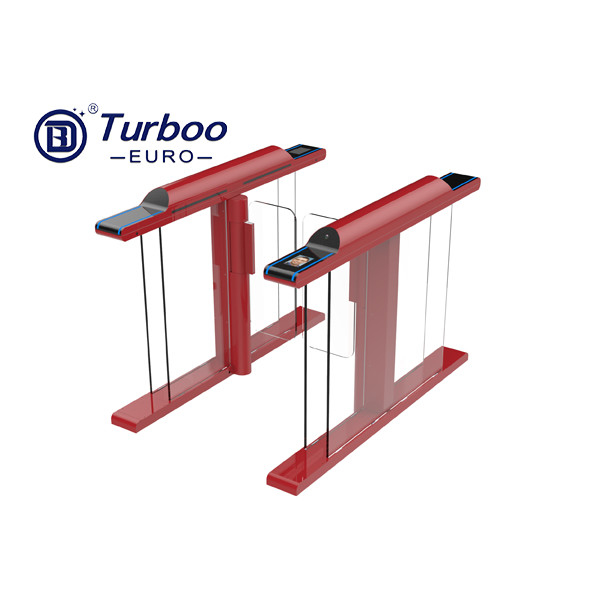

RFID Swing Turnstile Gate Dry Contact 120w With Card Reader

  • High Light

    RFID 120w Swing Turnstile Gate

    ,

    Dry Contact 120w Swing Turnstile Gate

    ,

    Card Reader Swing Gate Turnstile

  • Product Size
    1500*150*1040mm
  • Material
    2.0mm Cold Rolling Sheet With Painting
  • Arm Material
    10mm Transparent Acrylic
  • Infrared Sensor
    6 Pairs
  • Throughput Rate
    35p/m
  • Power Supply
    110v-220v
  • Max Power Consumption
    120w
  • Application
    Office, Factory, School,ect.
  • Communication Interface
    Dry Contact/RS485
  • Place of Origin
    Shenzhen, Guangdong, China
  • Brand Name
    Turboo Euro
  • Certification
    CE
  • Model Number
    R3013A
  • Minimum Order Quantity
    1/Piece
  • Price
    negotiate
  • Packaging Details
    Wooden Case Package
  • Delivery Time
    3-10 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10000 Piece/Pieces per Month

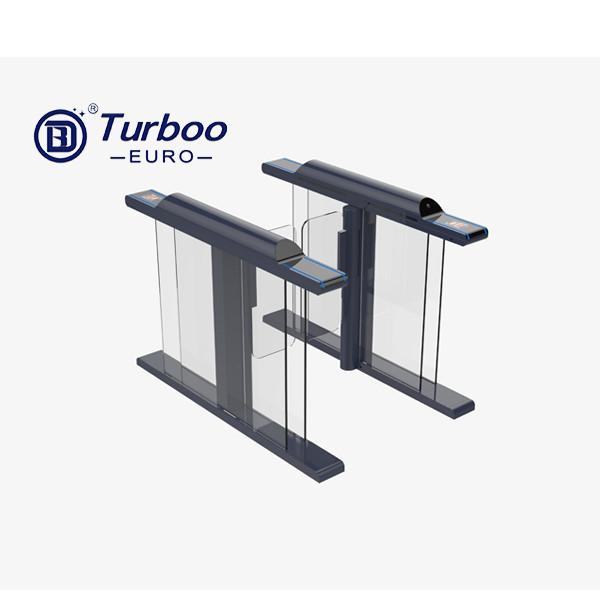

RFID Swing Turnstile Gate Dry Contact 120w With Card Reader

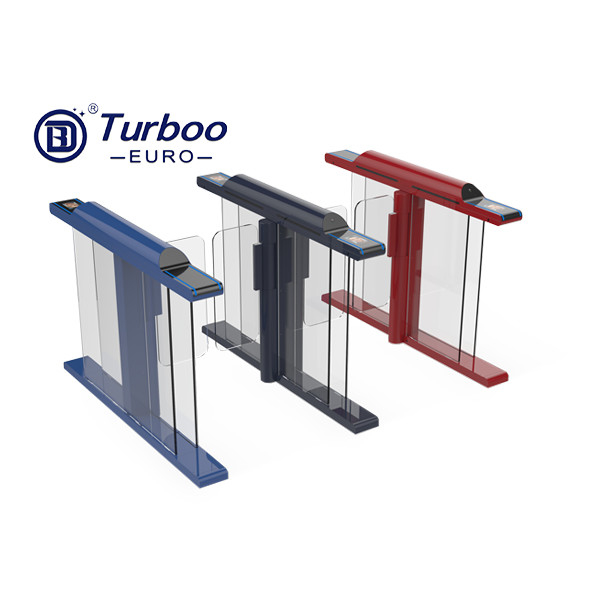

RFID Swing Turnstile Gate Dry Contact Dry Contact 120w With Card Reader



Product Description

AC240V Compact Swing Barrier Gate 600mm Passage Width For Office Building

Turboo offers a selection of standard rotating-arm tripod, half-height, and full-height turnstiles.swing barrier turnstile. A state of the art ‘optical turnstile’, which replaces the need for an obtrusive physical barrier by utilising active infra-red beams to create an invisible electronic field between two pedestals, monitoring the passage of every individual entering and leaving a facility. They activate an alarm in the event of an illegal action. If an unauthorised person attempts to enter, the optical turnstile is designed to detect tailgating, collusion, non-entry and obstruction.

Turnstile Model Number: R3013A
Product Size: 1500*150*1040mm
Pass Width: 600mm
Net Weight: 70kg
Material: 2.0mm cold rolling sheet with painting
Arm Material: 10mm Acrylic
Driver: Brushless Servo Motor
Infrared Sensor: 6 pairs
MCBF 5,000,000 Cycles
Application Airports, Hotels, Commercial buldings, etc


Dimension Diagram

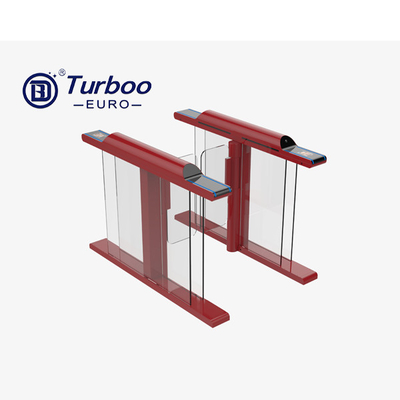

RFID Swing Turnstile Gate Dry Contact 120w With Card Reader 0
Features And Benefits
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

RFID Swing Turnstile Gate Dry Contact 120w With Card Reader 1

RFID Swing Turnstile Gate Dry Contact 120w With Card Reader 2




Certification
RFID Swing Turnstile Gate Dry Contact 120w With Card Reader 3
Project Case
RFID Swing Turnstile Gate Dry Contact 120w With Card Reader 4

FAQ

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 10-25 days for order less than 5000 pcs. Time is
negotiable.
Q:3. Do you have any MOQ limit?
A: No. 1pc is our M0Q.
Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to
arrive. To bulk order air or sea shipping is suggested.
Q: 5. What is the warranty for the products?
A: Yes, we offer 1 year warranty for the products.


Packaging And Ship
RFID Swing Turnstile Gate Dry Contact 120w With Card Reader 5
